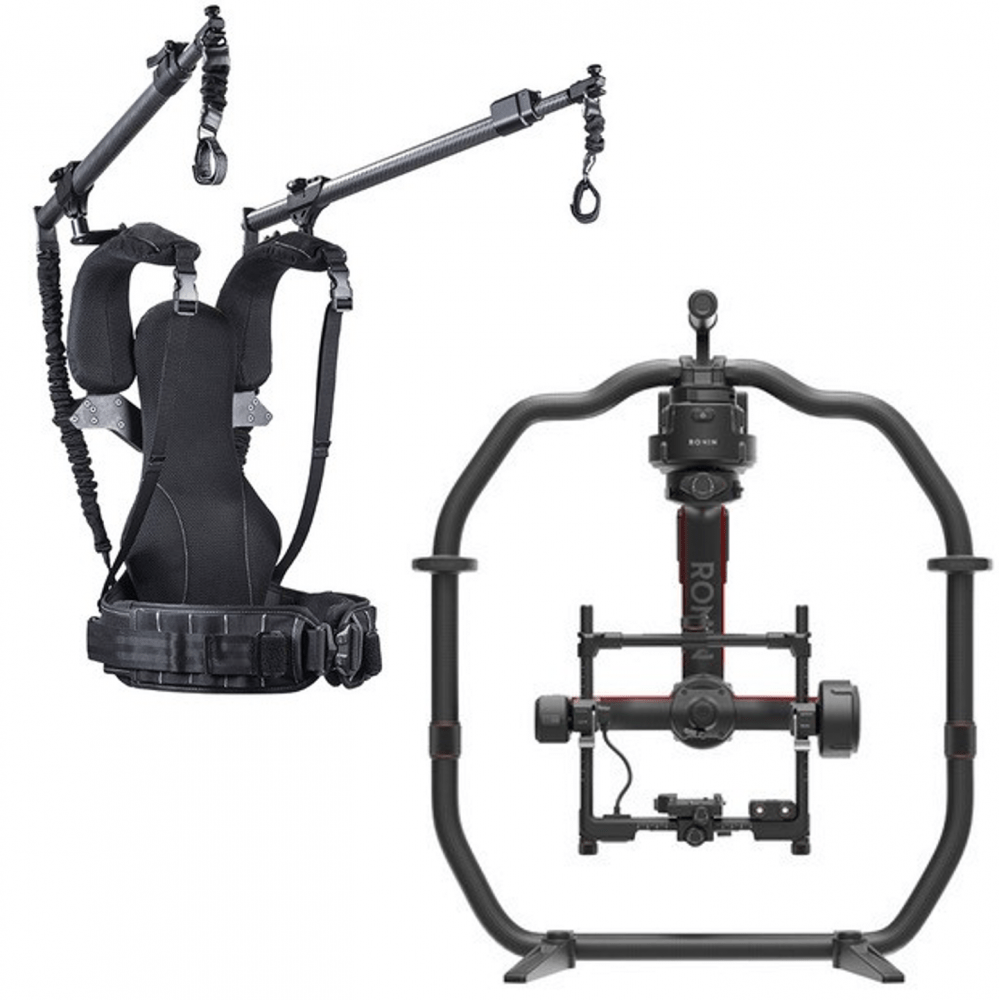

Combo DJI Ronin 2 & Ready Rig GS PRO ARM
DJI Ronin 2 – Professional Bundle:
- More versatile professional 3-axis stabilization system
- Carbon fiber monocoque frame
- High torque motors supporting cameras up to 13.6kg
- Advanced balancing for precision controls
- Interchangeable and self-heating batteries
- Internal power supply for camera and accessories Integrated camera controls
- Onboard GPS and compatibility with A3 flight controller
Ready Rig GS Kit ProArm Stabilization Harness:
The Ready Rig GS + ProArms features vertical stabilization and reduces bounce motion, providing smoother camera control.
By redistributing the weight of a gimbal-mounted or handheld camera setups to your legs and core, this kit enables you to extend your shoot for longer periods of time with less fatigue. The Ready Rig GS + ProArms works with any gimbal in standard or underslung mode or a handheld camera package.
The ProArm design of telescopic carbon fiber support arms boosts the GS payload from 30 to 40 pounds. The ProArms telescope from 24” to 37”, generating a boom range of 55”, allowing for smooth sweeping movements and increased precision during your shots. . Additionally, the ProArms feature 1/4″-20 and 3/8″-16 threads that allow you to mount monitors to either arm to keep it in your line of sight.
The Ready Rig GS + ProArms provides versatility and freedom of movement, enabling you to create without limitations.
DJI Ronin 2 - Bundle Professional :
Operating current:
Static current: 300 mA (@ 22.8 V)
Dynamic current: 500 mA (@ 22.8 V)
Motor blocked current: 15 A max (@ 22.8 V)
Operating temperature: -20 ° C ~ 50 ° C (-4 ° F ~ 122 ° F)
Weight:
With top handle: 5.5 kg
Without top handle: 4.2 kg
Carrycot dimensions:
Without top handle: 350mm (W) x 416mm (D) x 530mm (L)
With top handle: 630mm (W) x 416mm (D) x 720mm (L)
PERIPHERAL DEVICES:
Dimensions du support de caméra Profondeur maximale depuis le centre de gravité de la plaque de fixation de la caméra : 245 mm
Camera mount dimensions:
Maximum depth from the center of gravity of the camera mounting plate: 245 mm
Maximum height measured from top of camera mounting plate: 165mm
Maximum width: 180 mm
Power of accessory connections:
14.4 V x 4 Camera cage (8 A when combined), 12.6 V x 2 panoramic motor (4 A when combined), 12.6 V x 1 P-Tap (8 A)
GCU input power
Smart Battery:4280mAh-22.8V
Connections: 2.4 GHz / 5.8 GHz radio control; Bluetooth 4.0; USB Type-C
PC / MAC configuration required for the wizard: Windows 7 or later version; Mac OS X 10.11 or later version
Mobile Assistant Requirements: iOS 9 or later version; Android 4.4 or later version
PERFORMANCE IN OPERATION:
Payload: 13.6 kg
Angular momentum angle: ± 0.02 °
Maximum rotation control speed:
Panoramic axis: 400 ° / s
Tilt axis: 360 ° / s
Roll axis: 360 ° / s
Mechanical amplitude:
Pan axis control: continuous 360 ° rotation
Checking the tilt axis. : ± 135 °
Roll axis control: ± 220 °
Rotation control range:
Pan axis control: continuous 360 ° rotation
Checking the tilt axis. : 45 ° to -135 °
Roll axis control: ± 45 °
READY RIG GS PROARM:
- Supports a weight of up to 18 kg.
- Vertical axis stabilization.
- Ergonomic, reduces operator fatigue.
- Extended Range of Motion - 140cm effective extension range.
- Compact and lightweight design.
- Durable carbon fiber and aluminum design.
Package contents:
- Harness Frame x1
- Shoulder pads x2
- ProArm Carbon Fiber Support Rod x2
- Rear tension cables x2
- Universal carrycot clips x2
- Ready Rig Stabilization Harness Bag x1
Technical characteristics
- Load range: 1 - 18 kg
- Belt size: 71 - 111 cm
- Weight: 6.4 kg
- Weight of the set: 8.7 kg
- Box dimensions (LxWxH): 66 x 40 x 25.4 cm
Compatibility:
Bundle Ronin 2
