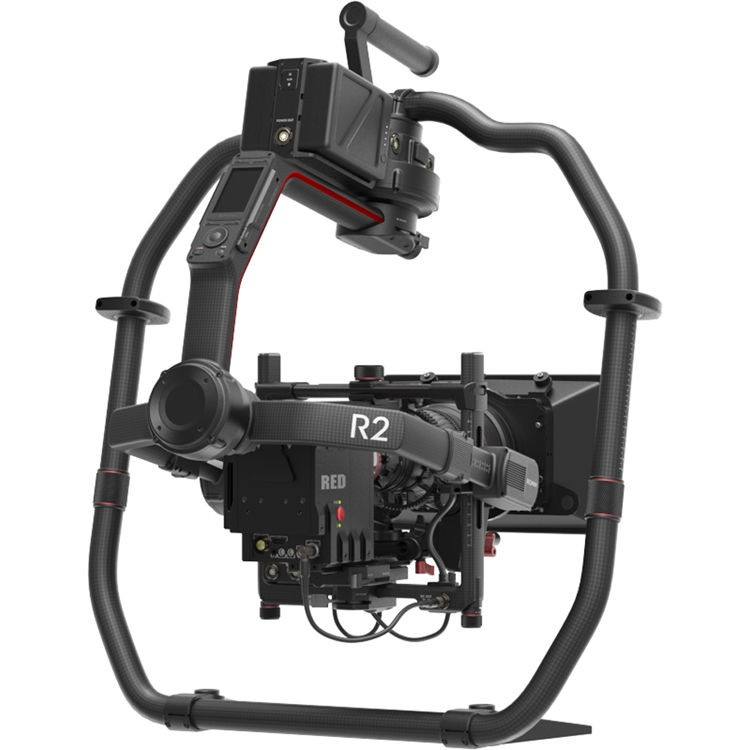

The versatile DJI RONIN 2 is suitable for use either handheld or mounted in a variety of ways including onto a drone, Steadicam, vehicle mount, and more. An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 30 pounds. This means it can be used for everything from Mirrorless up to cinema cameras such as the RED cameras and ARRI ALEXA Mini or Sony Alpha series.
Like its predecessor, the Ronin 2 features support for underslung, upright, and briefcase operation modes to help you achieve the best angle. However, it has been redesigned to enable easy transition between upright and underslung modes without changing the position of the camera. It also offers several other improvements, such as enhancements to the control software and physical design to simplify taking complex shots without sacrificing performance, all while making important functions more readily accessible.
- Most versatile professional 3-axis stabilization system
- Monocoque carbon fiber frame design
- High torque motors supporting cameras up to 30 lbs
- Fine tune balancing for precision control
- Self-heating hot-swappable batteries
- On-board power for camera and accessories
- Integrated camera controls
- Built-in GPS & compatible with DJI A3 Flight Controller
Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
Rotation Range | Yaw (Pan): 360°
Pitch (Tilt): 180° (-135 to 45°)
Roll: 90° (-45 to 45°) |
Follow Speed | Pan: 400°/s
Tilt: 360°/s
Roll: 360°/s |
Load Capacity | 30 lb / 13.6 kg |
Stabilization Accuracy | ±0.02° (Motionless) |
Compatibility
Supported Camera Dimensions | W: 7.1 x H: 6.5 x D: 9.6" / W: 180 x H: 165 x D: 245 mm |
Connectivity
Ports | 1 x D-Bus Input
1 x USB Type-C
4 x Proprietary (Power) Output
2 x Proprietary (Power) Output
1 x D-Tap (Power) Output |
Wireless Frequency | 2.4 GHz
5.8 GHz |
Wireless Protocol | Bluetooth 4.0 |
Battery
Capacity (mAh) | 4280 mAh |
Capacity (Wh) | 97.58 Wh |
Battery Runtime | 2.5 to 8 Hours |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Voltage | 22.8 VDC |
Environmental
Operating Temperature | -4 to 122°F / -20 to 50°C |
General
Dimensions | 24.8 x 16.4 x 28.3" / 630 x 416 x 720 mm (with Handlebar)
13.8 x 16.4 x 20.9" / 350 x 416 x 530 mm (without Handlebar) |
Weight | 12 lb / 5.5 kg (with Handlebar)
9 lb / 4.2 kg |
