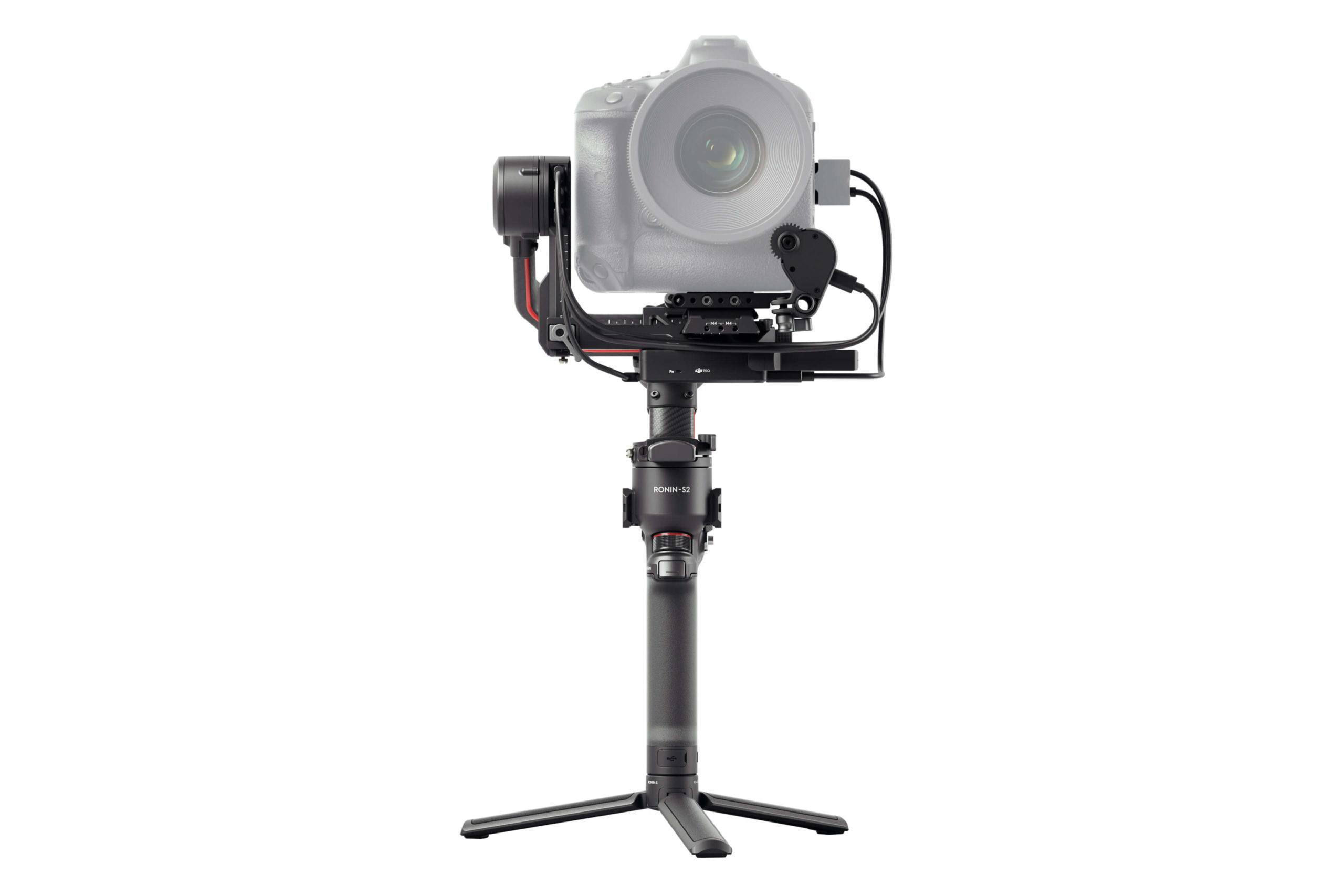

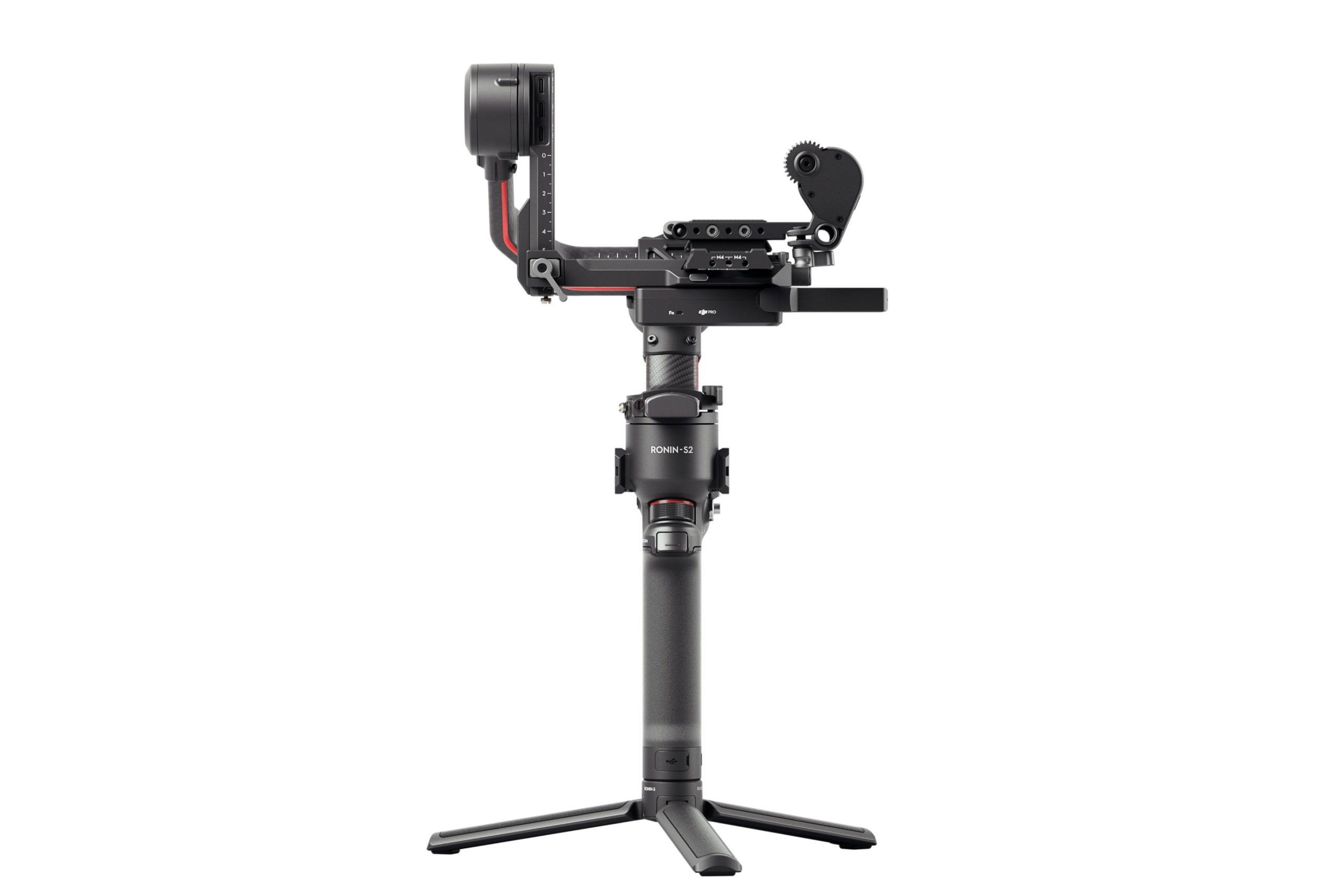

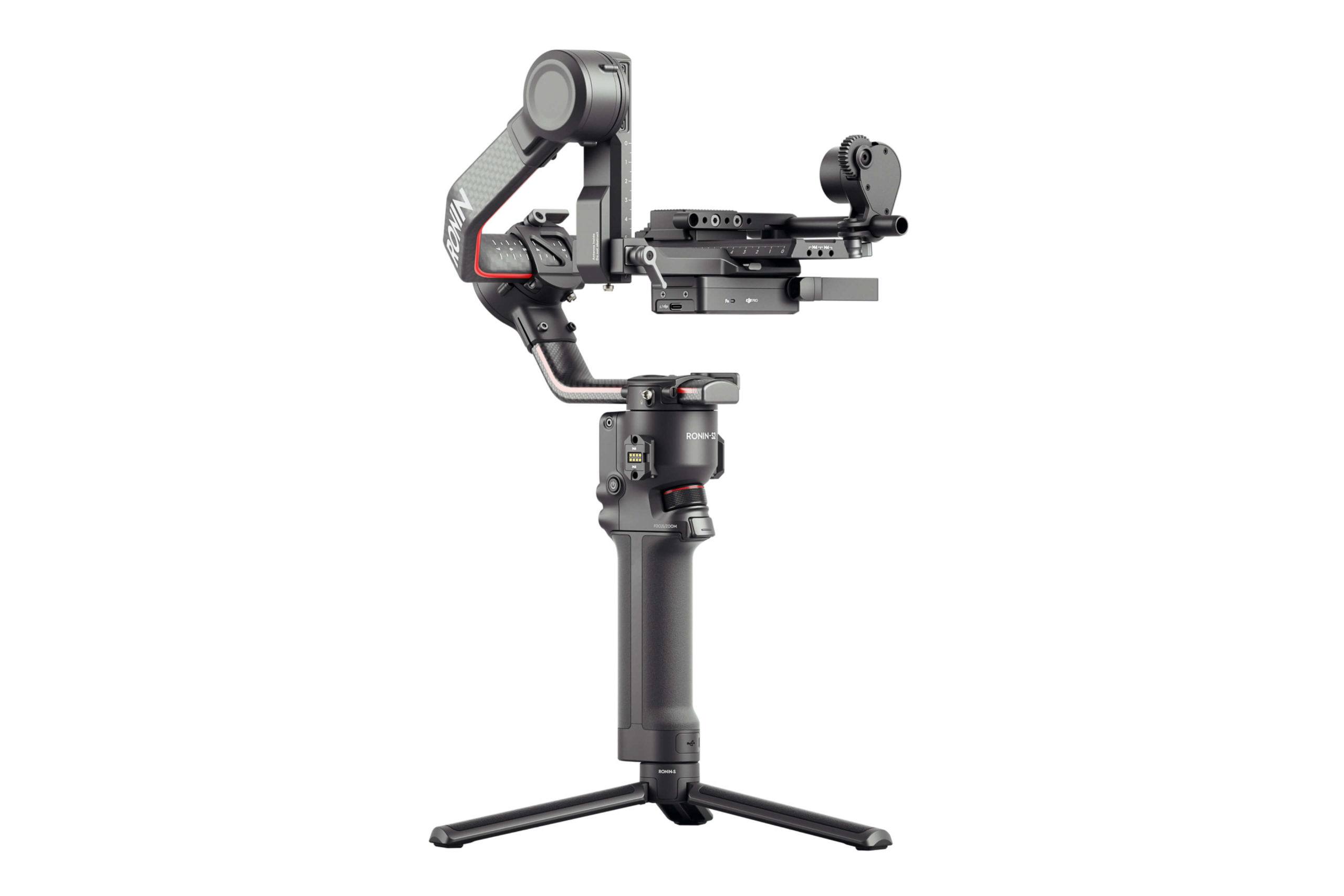

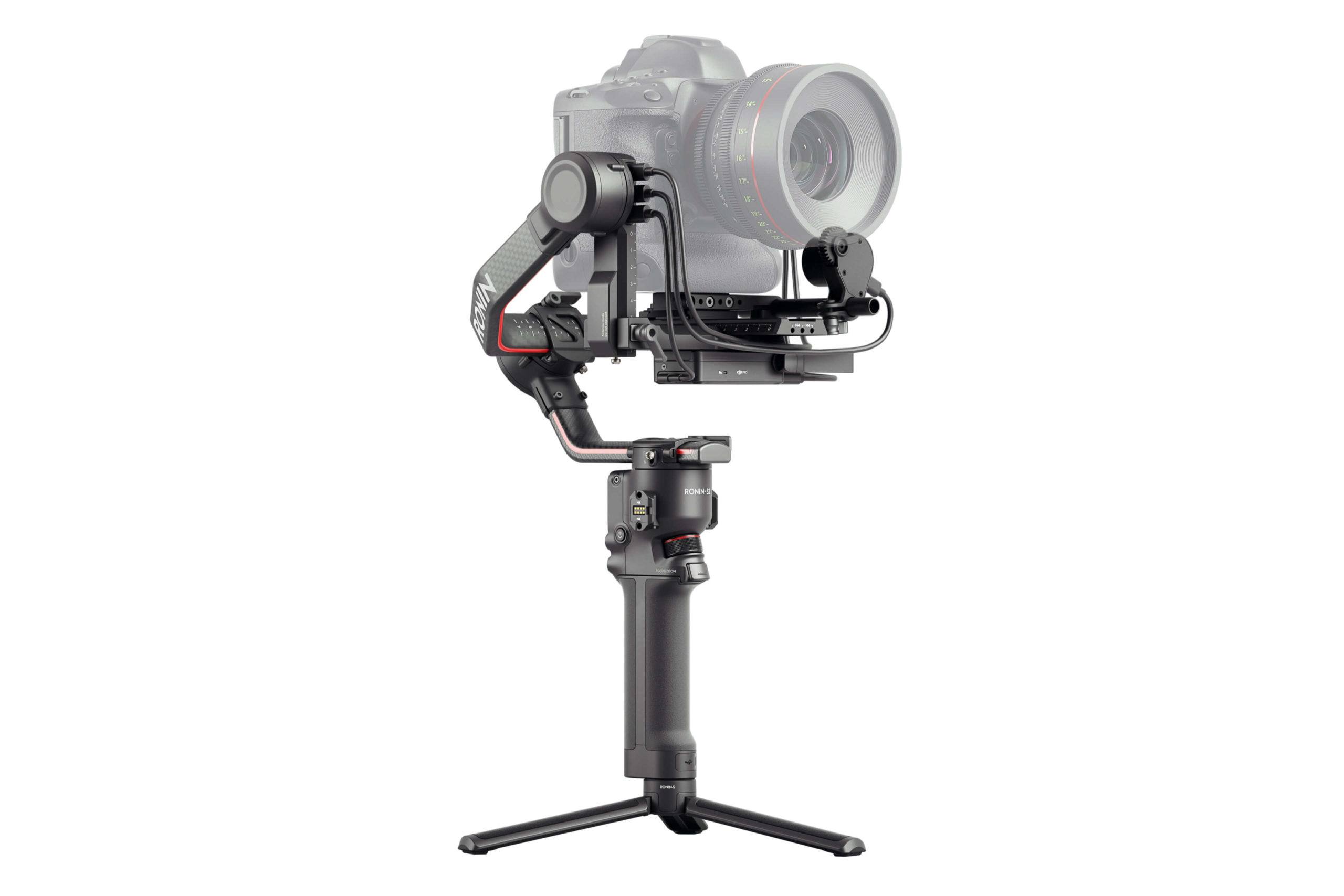

DJI RONIN RS2 Pro Combo
The DJI RONIN RS2 gimbal is a redesigned follow-up to the Ronin-S gimbal with a payload of up to 10 lb. It’s about 25% lighter and more compact thanks to monocoque carbon fiber axis arms and a shorter grip handle with a smaller battery cartridge, although still with a 12-hour runtime. The motors are about 20% more powerful and support cameras such as the Blackmagic Pocket 6K, Canon 1D X Mark III, Sony a7S III, and ALEXA Mini LF and more
The DJI RONIN RS2 also has a 1.4″ full-color LCD touchscreen that allows you to access gimbal settings as well as features such as time-lapse and hyperlapse, which were previously accessible only via the companion mobile app.
Key Features :

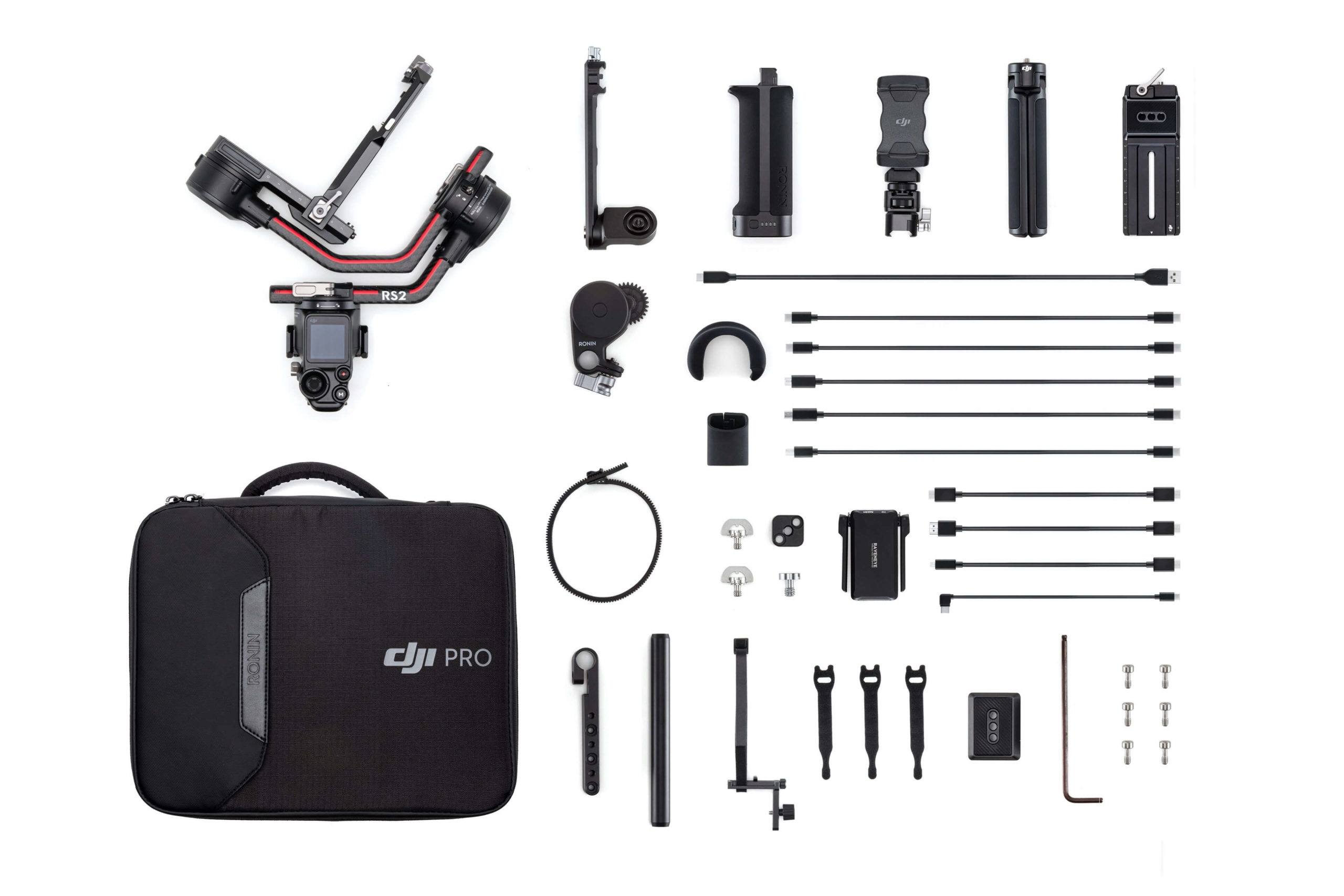

- RS 2 + 1080p Transmitter, Servo & More
- Lightweight Design with 10 lb Payload
- Supports BMPCC 6K, ALEXA Mini LF, 1D X
- Advanced 1.4″ Full-Color LCD Touchscreen
- RSA Ports with NATO Mount
- DJI Titan Stabilization Algorithm
- SuperSmooth Feature for Long Lenses
- Standard & Portrait Modes
- Fine-Tune Camera Balancing Dial
- Creative Functions Such as Time Tunnel
Gimbal
| Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
| Rotation Range | Yaw (Pan): 360° Pitch (Tilt): -112 to 214° Roll: -95 to 240° |
| Follow Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Load Capacity | 10 lb / 4.5 kg |
Compatibility
| Camera Mounting Screw | 1 x 1/4"-20 Male |
Connectivity
| Ports | 2 x RSA 3 x USB Type-C |
| Wireless Frequency | 2.4 GHz (2.4 - 2.483) |
| Wireless Protocol | Bluetooth 5.0 |
Battery
| Capacity (mAh) | 1950 mAh |
| Capacity (Wh) | 30.3 Wh |
| Battery Runtime | 12 Hours |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Voltage | 15.4 VDC |
Environmental
| Operating Temperature | -4 to 113°F / -20 to 45°C |
General
| Materials | Aluminum, Carbon Fiber, Plastic |
| Mounting | 1 x 1/4"-20 Female 1 x Cold Shoe Mount |
| Dimensions | 16.1 x 10.2 x 7.7" / 410 x 260 x 195 mm |
| Weight | 2.36 lb / 1.07 kg 2.595 lb / 1.177 kg (with Camera Plate) 2.948 lb / 1.337 kg (with Handlebar) |
Packaging Info
| Package Weight | 8.55 lb |
| Box Dimensions (LxWxH) | 13.2 x 11 x 6.5" |
